Integration with AI-Powered Predictive Monitoring for Automated Drone Inspections of Solar Panels

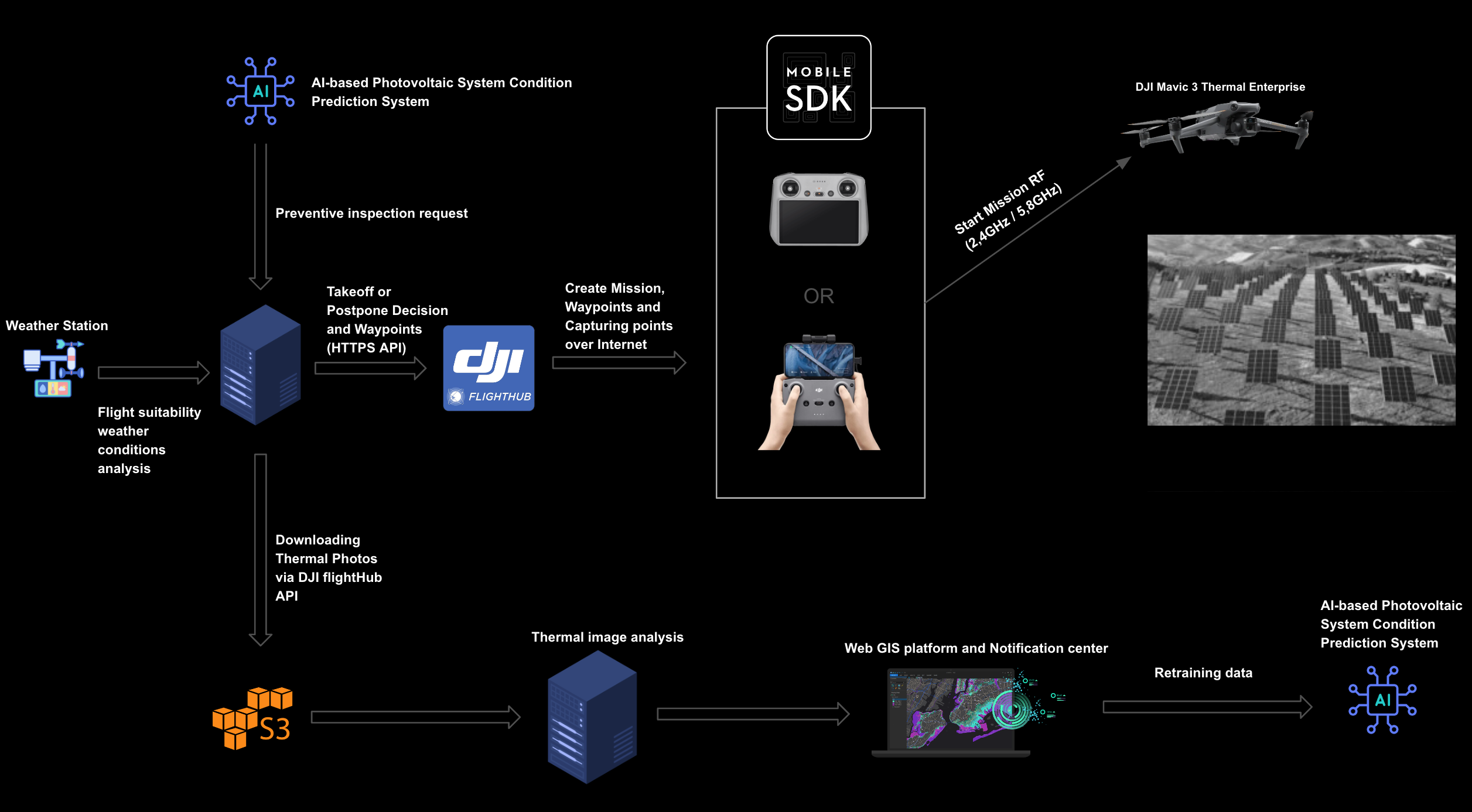

This proposed architecture outlines an integration solution for an automated drone inspection system, combined with an AI-based predictive maintenance platform for photovoltaic installations. The goal is to seamlessly integrate drone technology with AI-driven condition prediction systems to proactively inspect and maintain solar panel installations based on real-time data.
At the core of this system is an AI-based Photovoltaic System Condition Prediction tool. This AI analyzes historical performance data and ongoing sensor readings to predict when an inspection is necessary. Once the AI system determines that a potential issue may arise, it sends a preventive inspection request to the central server. The central server processes this request while simultaneously fetching data from an in-situ weather station to assess whether the current weather conditions are suitable for flight. Parameters like wind speed and precipitation are evaluated to decide whether the mission can proceed or should be postponed.
If the weather conditions are appropriate, the server constructs the mission flight plan, defining specific waypoints and capturing points for thermal imaging. This information is sent via API to the DJI FlightHub Cloud, which acts as the mission control center. The FlightHub then transmits the mission details to the Smart Controller or an RC controller with a mobile device running the DJI Mobile SDK. These devices, in turn, communicate with the DJI Mavic 3 Thermal Enterprise drone via RF (radio frequency), initiating the mission and controlling the flight.
As the drone autonomously follows the pre-programmed waypoints, it captures thermal images of the solar panels at designated points. These images are uploaded to the FlightHub platform, from which they are automatically downloaded to a cloud storage solution like Amazon S3. Once the images are stored, the system processes them using advanced thermal image analysis techniques. This analyzed data is then visualized on a Web GIS platform, where operators can easily identify issues such as hot spots or damaged panels. Simultaneously, any detected anomalies trigger automated notifications to the maintenance team, ensuring swift action is taken.
In addition, the processed thermal data feeds back into the AI prediction system to continuously retrain and improve its accuracy. By incorporating real-world inspection data into its models, the AI system becomes increasingly effective in predicting future maintenance needs and optimizing inspection schedules, leading to fewer system failures and improved overall performance.
Please note that automated drone flights are subject to the regulations and legal requirements of each country.
